Three Phase Voltage Regulator

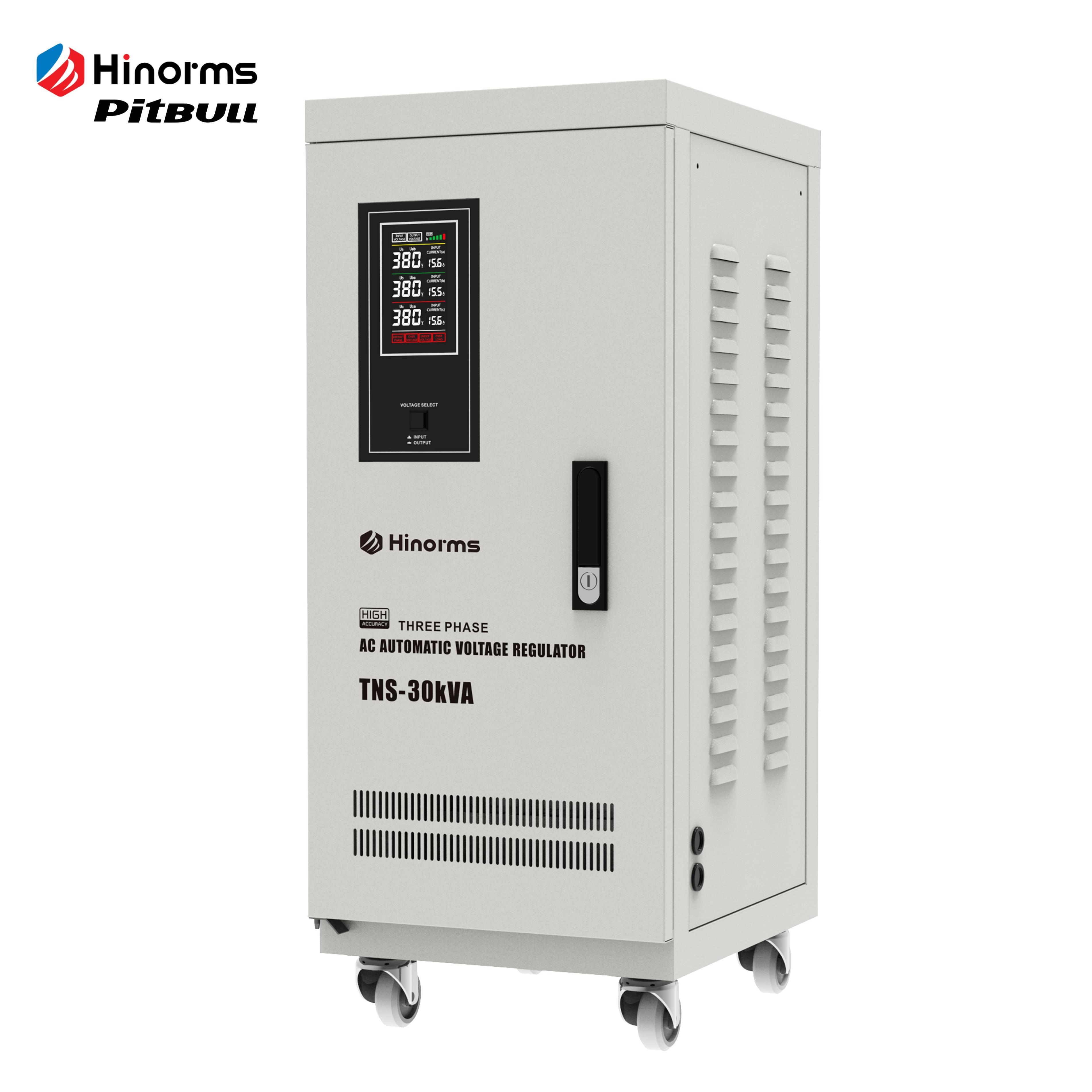

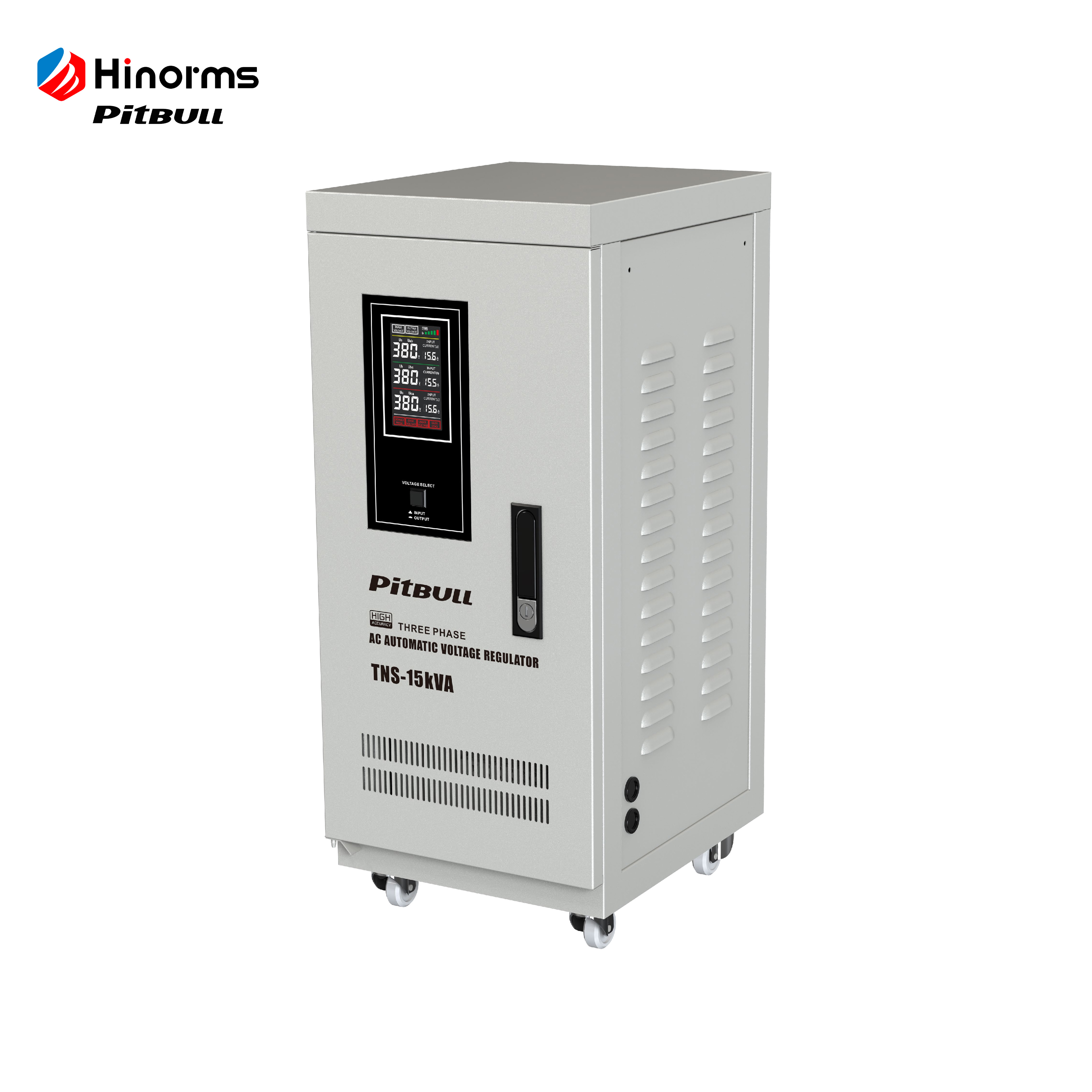

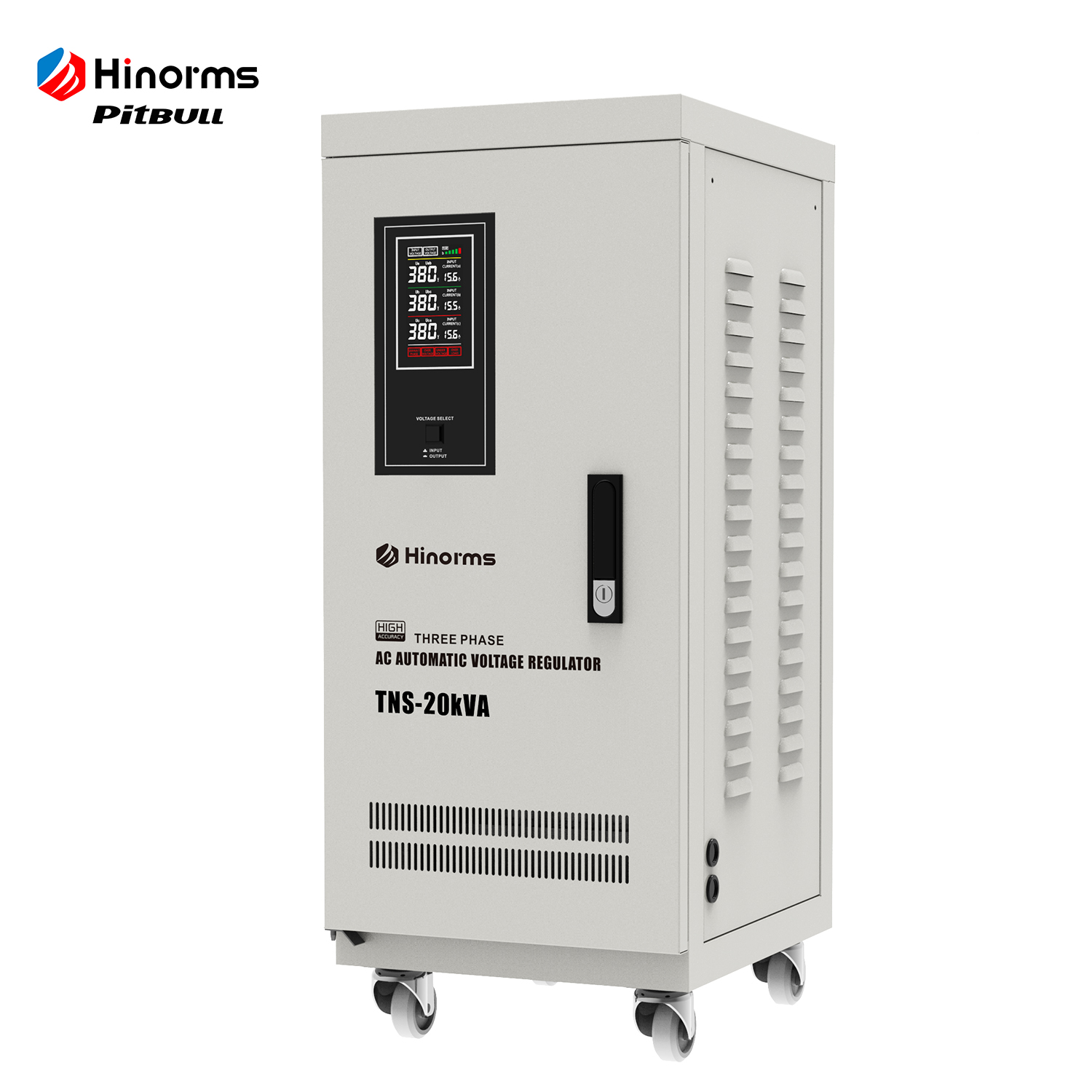

Three-Phase Servo Motor Type Voltage Regulator TNS Series
Product Model:
TNS
Minimum Order Quantity:
1 PCS
Capacity:
9KVA
15KVA
20KVA
30KVA
Input Range:
260-456V 300-430V
Description
Specifications
Online Inquiry
Recommended Products
Product Description
| Model: | TNS |
| Place of Origin: | Zhejiang, China |
| Brand Name: | Pitbull/Hinorms |
| Certification: | CE/ISO9001/ROHS/FCC |
| Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
| Delivery Time: | 7-45 days(depends on quantity) |
| Payment Terms: | 30% Deposit 70% Balance Before Delivery |
| Supply Ability: | 50000 Units/Month |
Applications
Home Appliances, Office Equipment, Medical Equipment, Industrial Equipment
Competitive Advantage
1.We are the standard drafter of the voltage stabilizer industry in China. Our founder, Mr. Hu, is a member of the China Power Supply Society.
2.For over 20 years, we have focused solely on the research and manufacturing of voltage stabilizers.
3.Our products have no substitutes in the market, because after years of hard work, we are the only factory that has truly solved the multiple pain points in the industry.
Product Specifications
| Model: | TNS | ||
| Capacity: | 9KVA/15KVA/20KVA/30KVA | ||
| Input voltage: | Option(1) | AC 260-456V | |
| Option(2) | AC 300-430V | ||
| Output voltage: | AC 380V(Customized for regional voltage.) | ||
| Output Precision: | ±3% | ||
| Frequency: | 50Hz/60Hz | ||
| Phase types: | Three-phase | ||
| Function: | Control Type | Three-phase Servo Motor Type | |
| Protection | Over Voltage/Overload/High Temperature/Short Circuit | ||
| Delaying | Short Delay:3-5secs | ||
| Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | ||
| Regulation&Compensation | Three Regulating Transformers | ||
| Effciency: | AC-AC | ≥98% | |
| Environmentasl: | Temperature | -20~50 degree | |
| Humidity | <90% | ||
| Elevation | <4000m | ||
