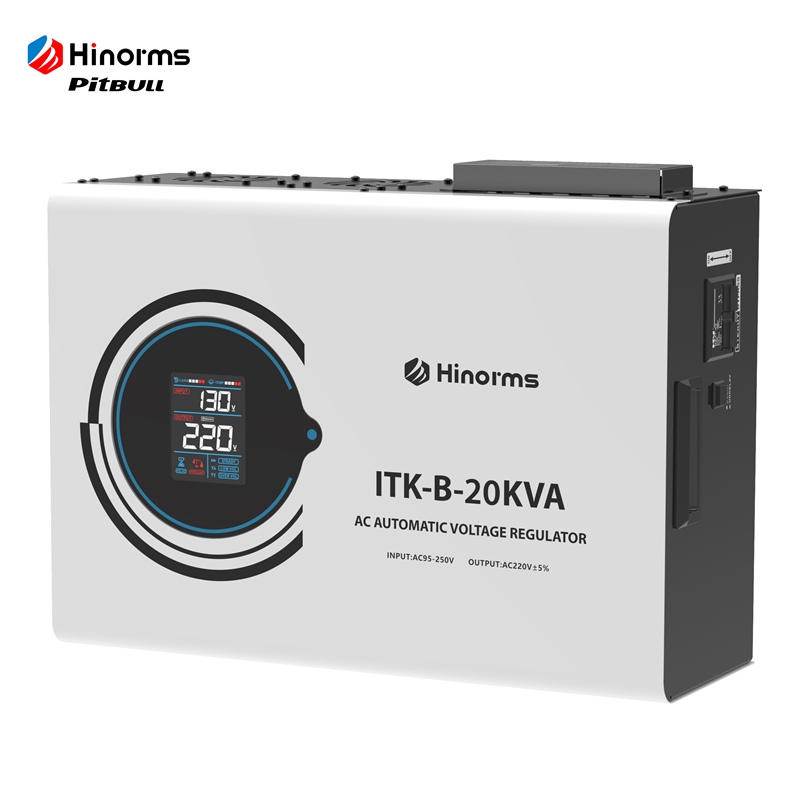

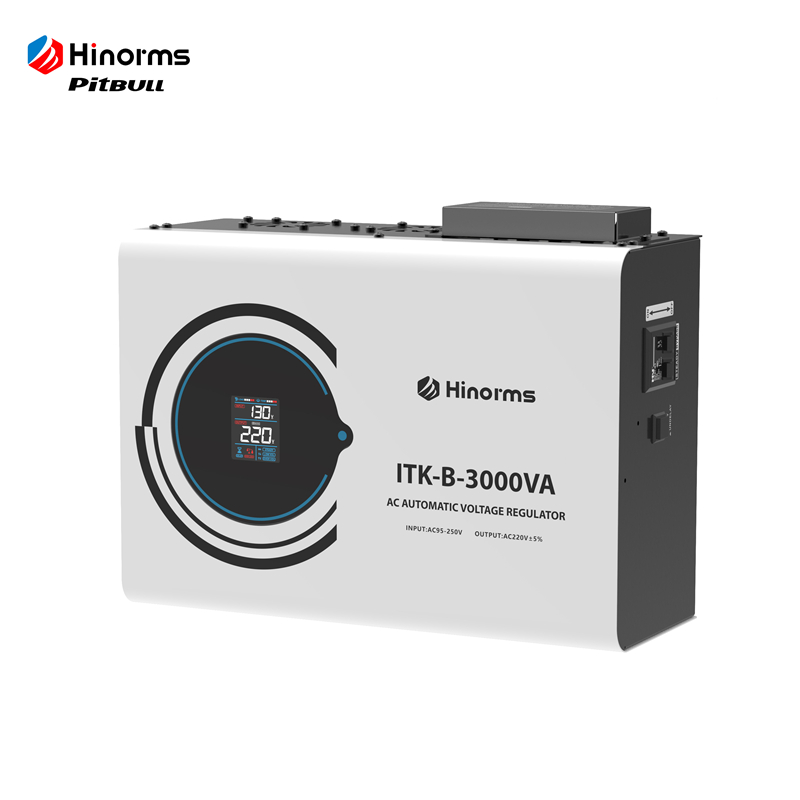

SCR (Thyristor) Voltage Regulator
SCR(Thyristor) Voltage Regulator ITK-B Series
Product Model:
ITK-B
Minimum Order Quantity:
10 PCS
Capacity:
1KVA
2KVA
3KVA
5KVA
8KVA
10KVA
12KVA
15KVA
20KVA
25KVA
30KVA
Input Range:
95 - 250V
Description
Specifications
Online Inquiry
Recommended Products
Product Description
| Model: | ITK-B |
| Place of Origin: | Zhejiang, China |
| Brand Name: | Pitbull/Hinorms |
| Certification: | CE/ISO9001/ROHS/FCC |
| Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
| Delivery Time: | 7-45 days(depends on quantity) |
| Payment Terms: | 30% Deposit 70% Balance Before Delivery |
| Supply Ability: | 50000 Units/Month |
Applications
Home Appliances, Office Equipment, Medical Equipment, Industrial Equipment
Competitive Advantage
1.We are the standard drafter of the voltage stabilizer industry in China. Our founder, Mr. Hu, is a member of the China Power Supply Society.
2.For over 20 years, we have focused solely on the research and manufacturing of voltage stabilizers.
3.Our products have no substitutes in the market, because after years of hard work, we are the only factory that has truly solved the multiple pain points in the industry.
Product Specifications
| Product model: | ITK-B | ||
| Capacity | 1KVA/2KVA/3KVA/5KVA | 8KVA/10KVA/12KVA/15KVA/20KVA/25KVA/30KVA | |
| Input voltage range | AC 95-250V | ||
| Output voltage | AC 220V | ||
| Output Precision | ±5% | ||
| Frequency | 50Hz/60Hz | ||
| Phase types | Single Phase | ||
| Function | Control Type | SCR (Thyristor) Type | |
| Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage | ||
| Delaying | 5secs(Short) ; 200secs(Long) | ||
| Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | ||
| Effciency | AC-AC | ≥95% | ≥98% |
| Environmental | Temperature | -20~50 degree | |
| Humidity | <90% | ||
| Elevation | <4000m | ||
Packing Information
| Model | Pcs/Carton | Product Size(CM) | Carton Size(CM) | Net weight(KG) | Gross Weight(KG) |
| ITK-B 1KVA | 1 | 32.8*26.9*13.2 | 40*32*17.5 | 6.4 | 6.8 |

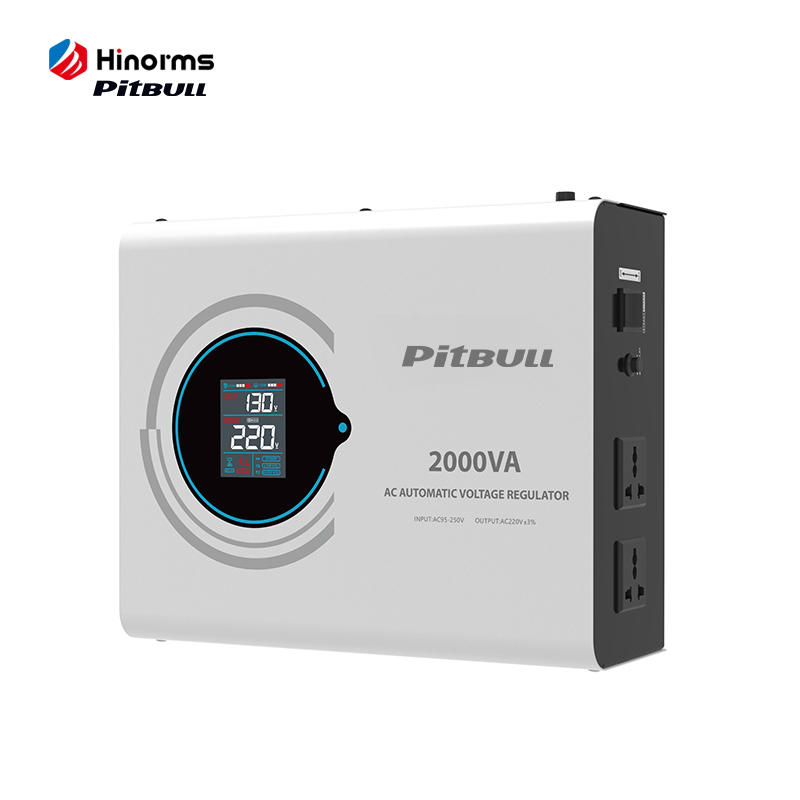

| ITK-B 2KVA | 1 | 32.8*26.9*13.2 | 40*32*17.5 | 7.8 | 8.4 |
| ITK-B 3KVA | 1 | 38.2*29*16.4 | 43.3*33.5*19 | 11.8 | 12.6 |

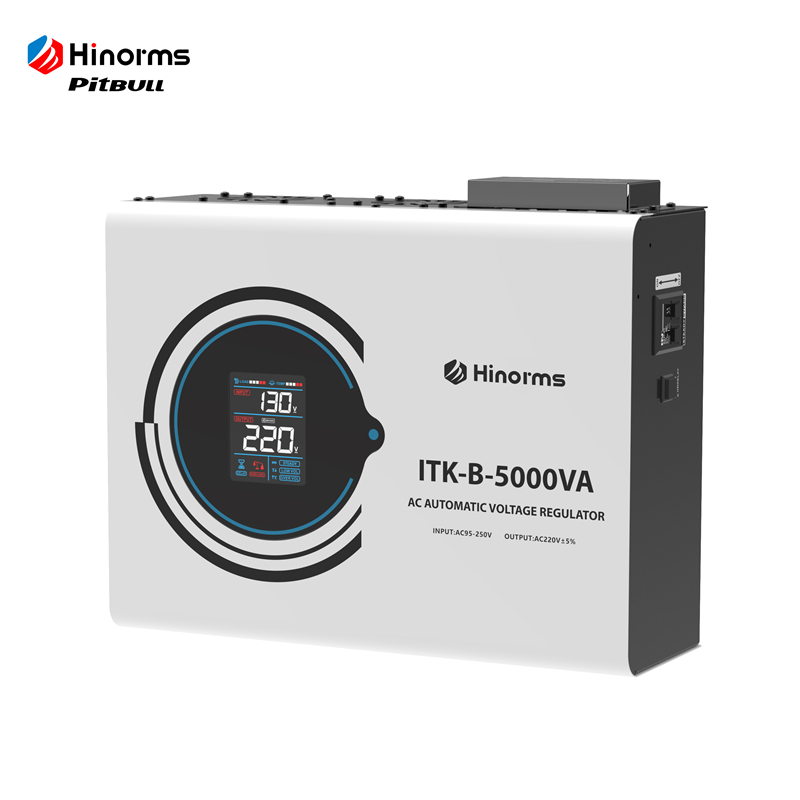

| ITK-B 5KVA | 1 | 43.8*35.6*16.4 | 49*40.5*21 | 17.6 | 19.15 |

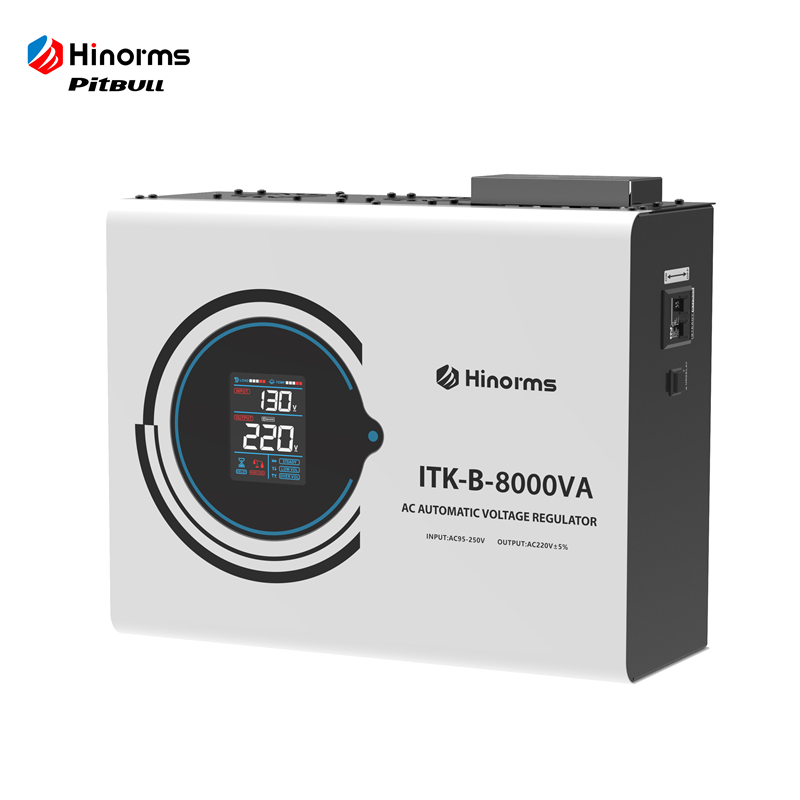

| ITK-B 8KVA | 1 | 43.8*36.5*18.5 | 49*39.5*23 | 20.8 | 21.7 |

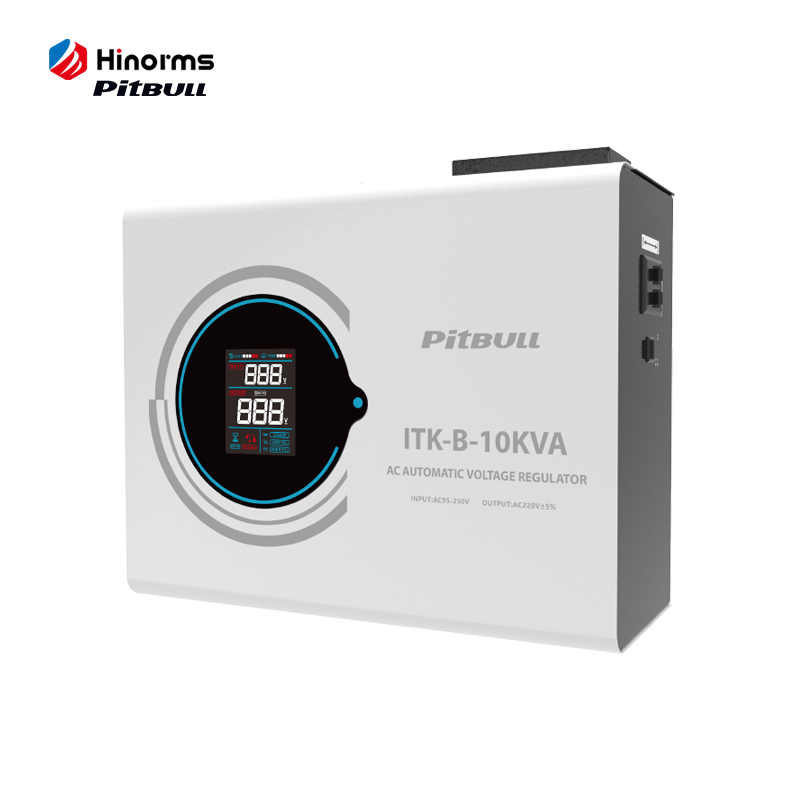

| ITK-B 10KVA | 1 | 43.8*36.5*18.5 | 49*39.5*23 | 24.7 | 26.3 |

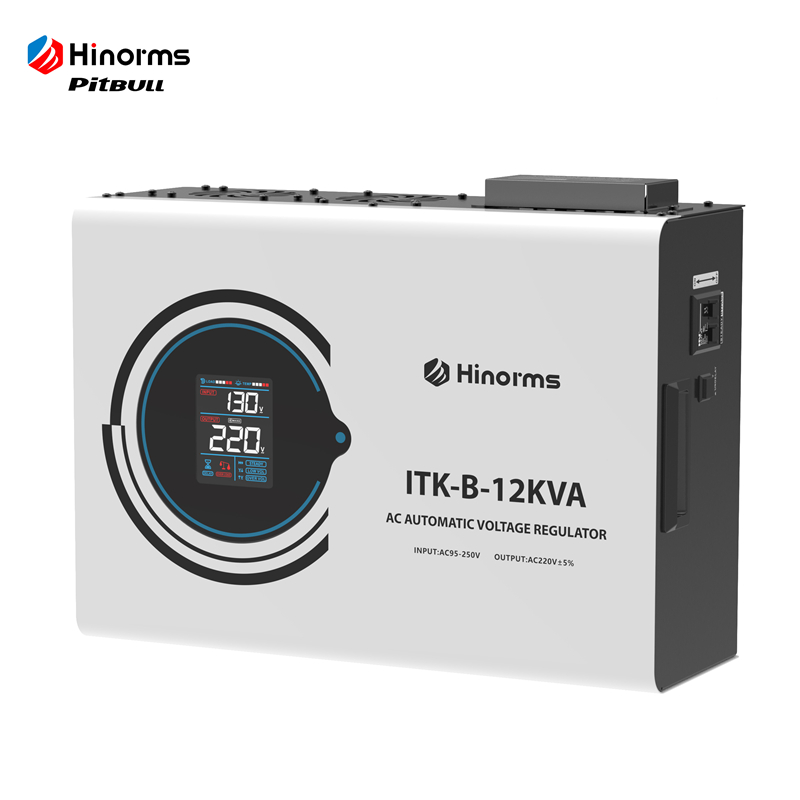

| ITK-B 12KVA | 1 | 48.3*34.5*17.5 | 54*40*26 | 34.2 | 39.2 |

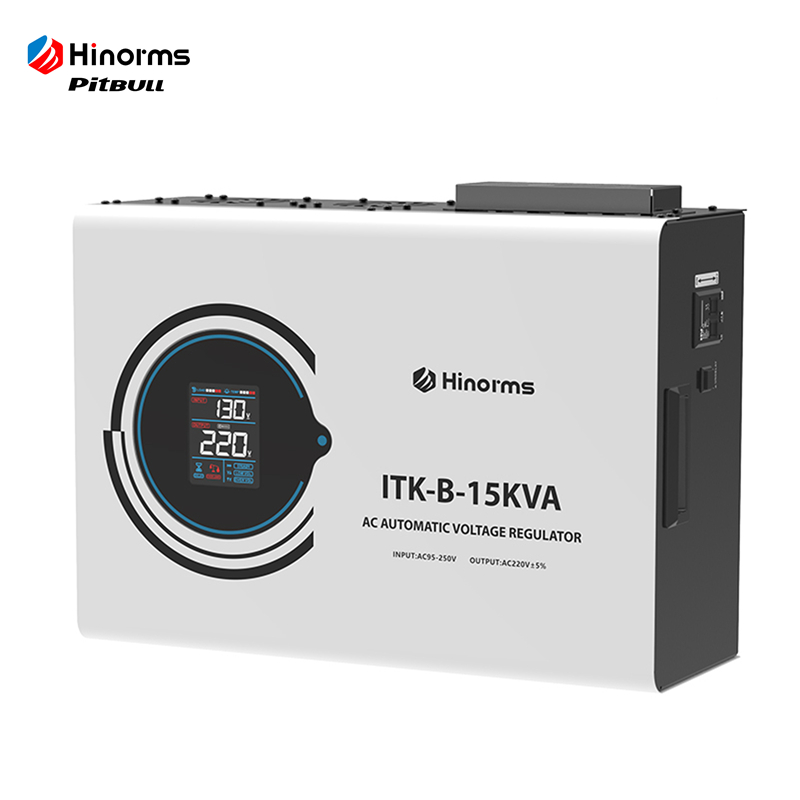

| ITK-B 15KVA | 1 | 52*38.6*20.3 | 57*42*28.5 | 36.2 | 41.2 |
| ITK-B 20KVA | 1 | 52*38.6*20.3 | 57*42*28.5 | 37.4 | 43.5 |

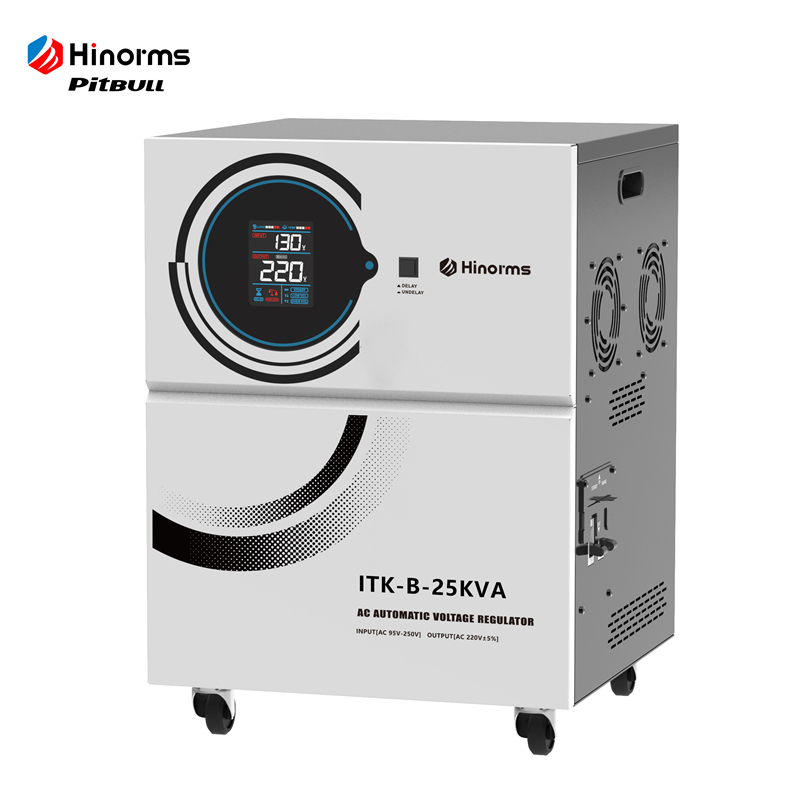

| ITK-B 25KVA | 1 | 61.55*43.5*46.5 | 51*51*76 | 51.9 | 61.9 |

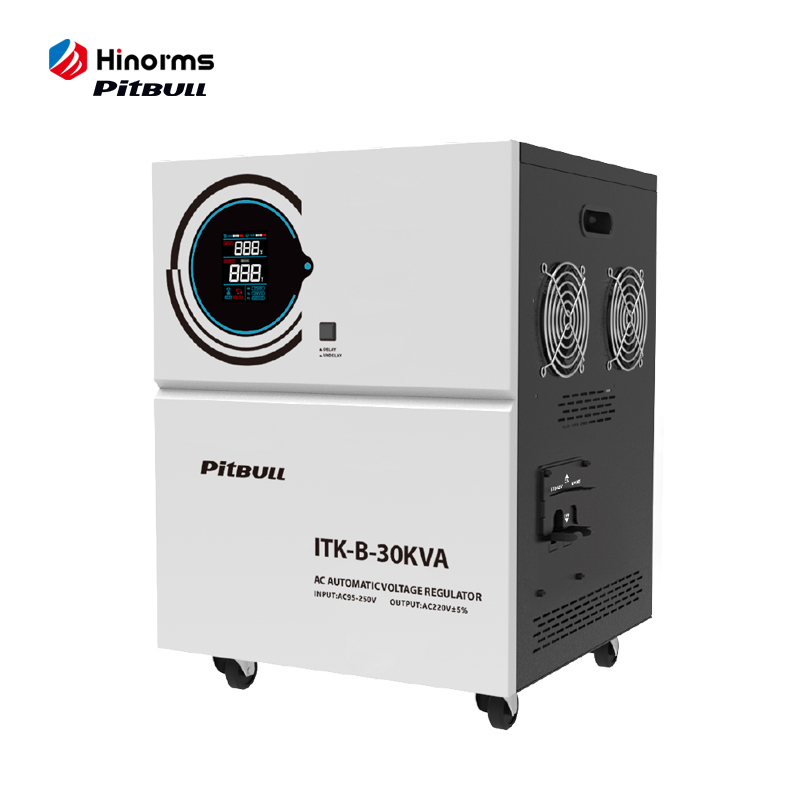

| ITK-B 30KVA | 1 | 61.55*43.5*46.5 | 51*51*76 | 60.9 | 70.9 |
