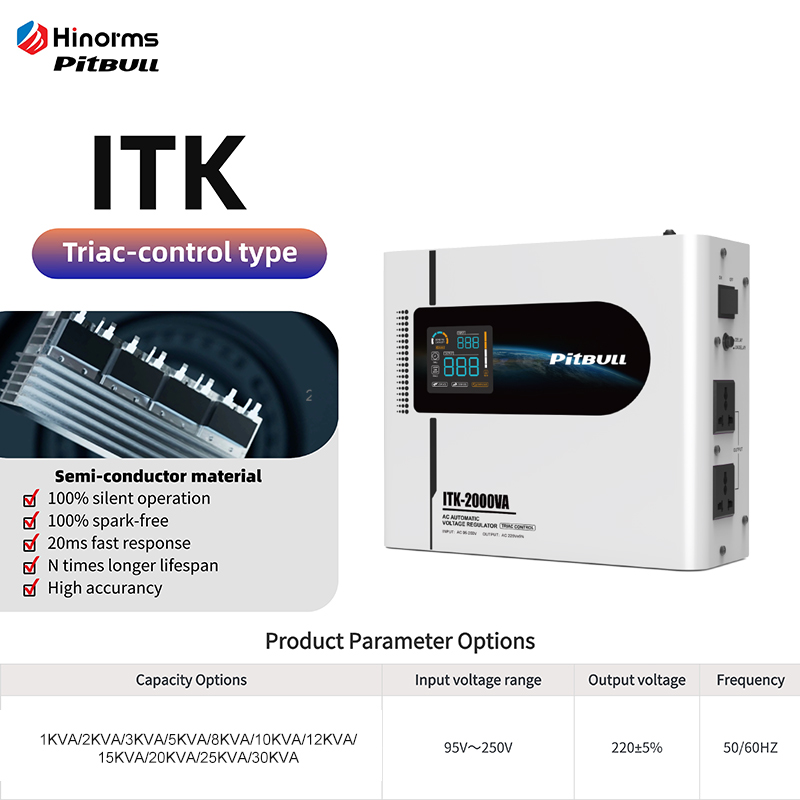

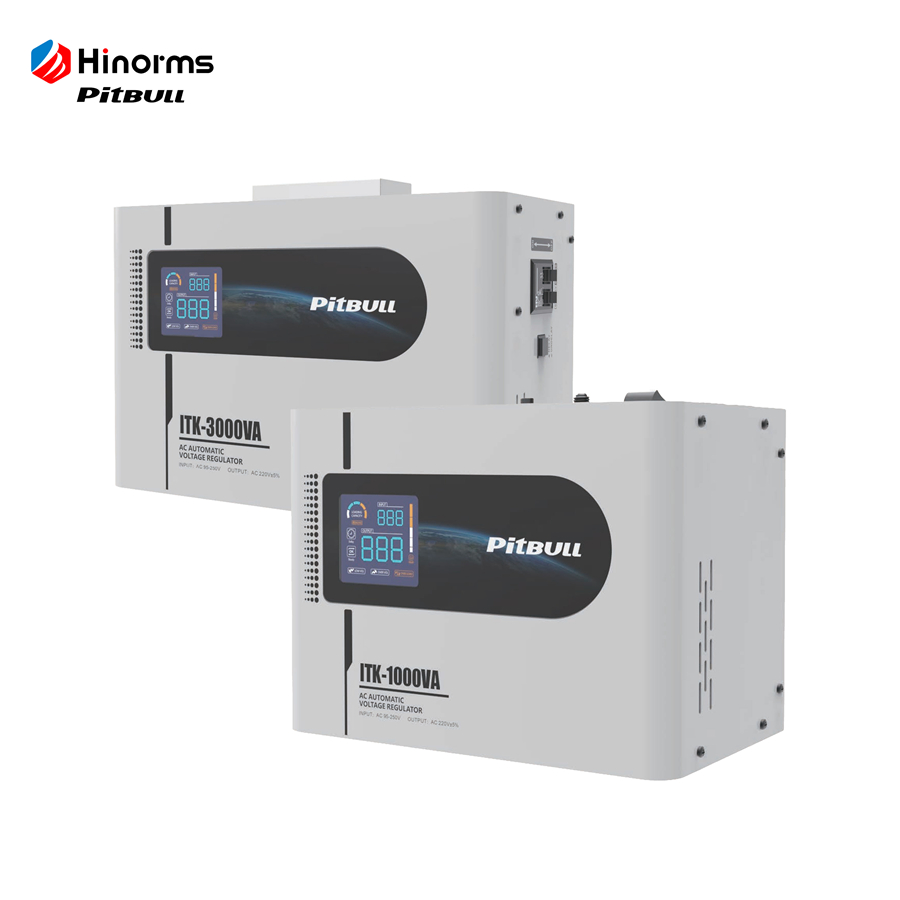

SCR (Thyristor) Type Voltage Regulator ITK Series

The Thyristor Series Voltage Stabilizer integrates advanced semiconductor switching technology to achieve high-efficiency voltage regulation with exceptional durability and operational stability. Its fully electronic, contactless switching architecture eliminates mechanical wear and arc generation, enabling completely spark-free and silent performance for noise-sensitive applications. With ±5% voltage regulation accuracy and ultra-fast response capability, it delivers precise power conditioning under dynamic load conditions. The built-in six-stage protection system provides comprehensive safety management, ensuring dependable operation across a wide range of electrical environments.

Product Model:

ITK

Minimum Order Quantity:

10 PCS

Capacity:

1KVA

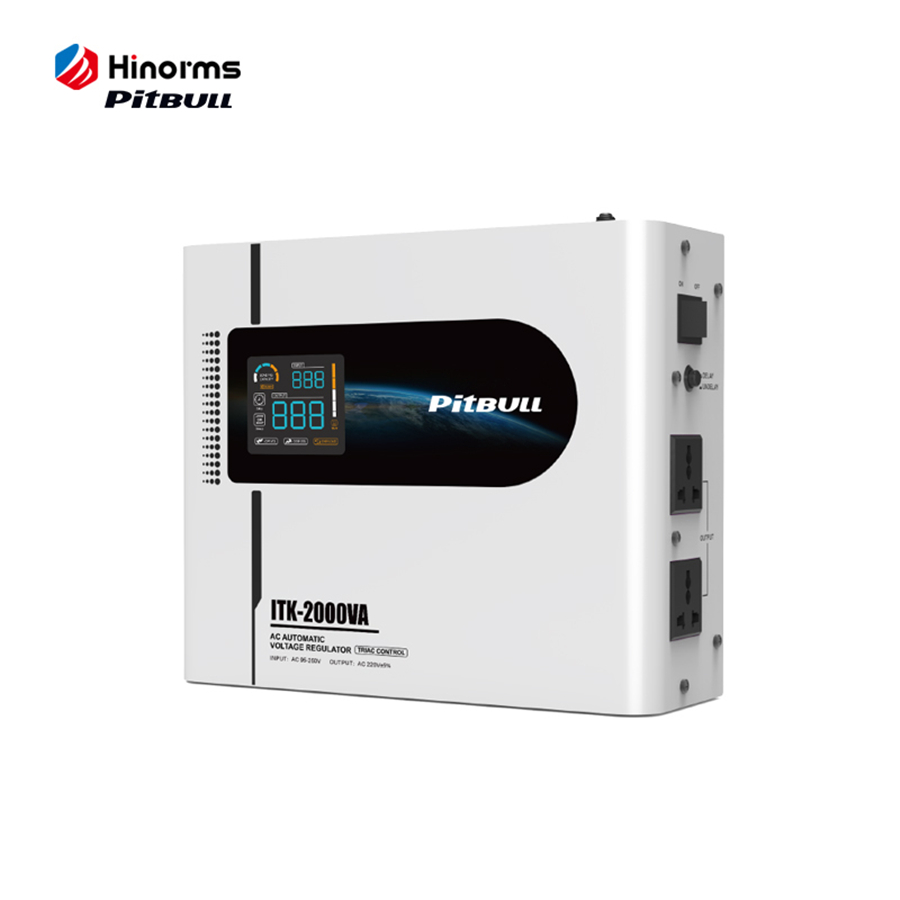

2KVA

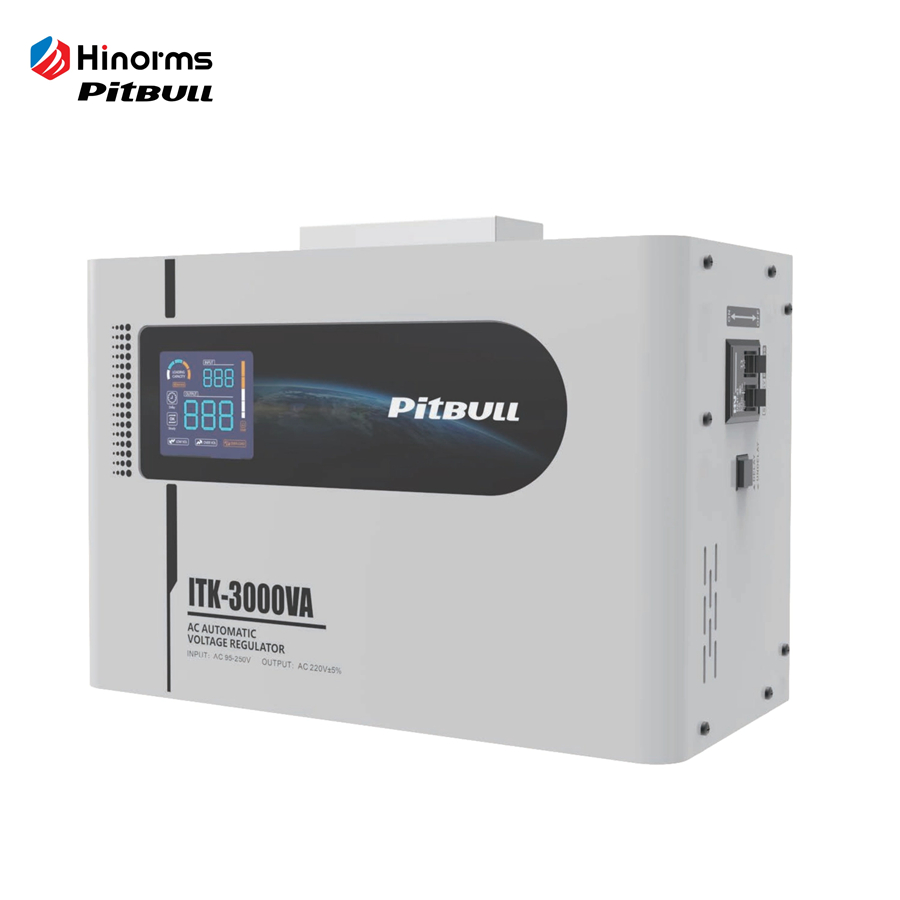

3KVA

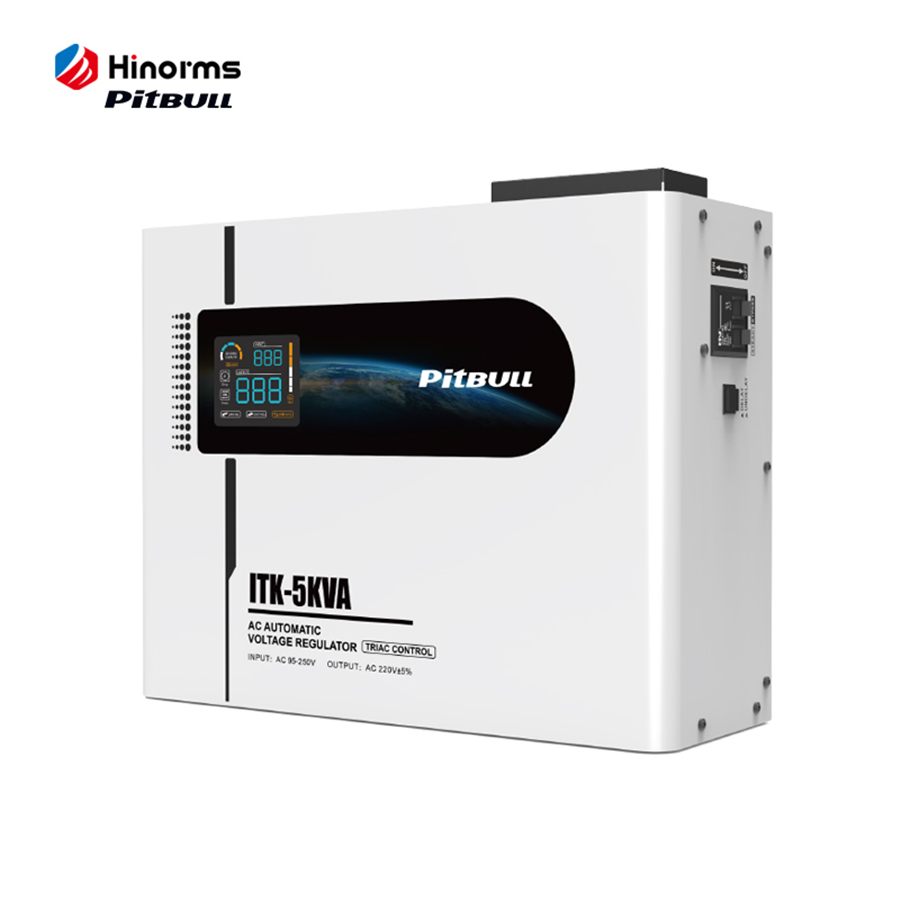

5KVA

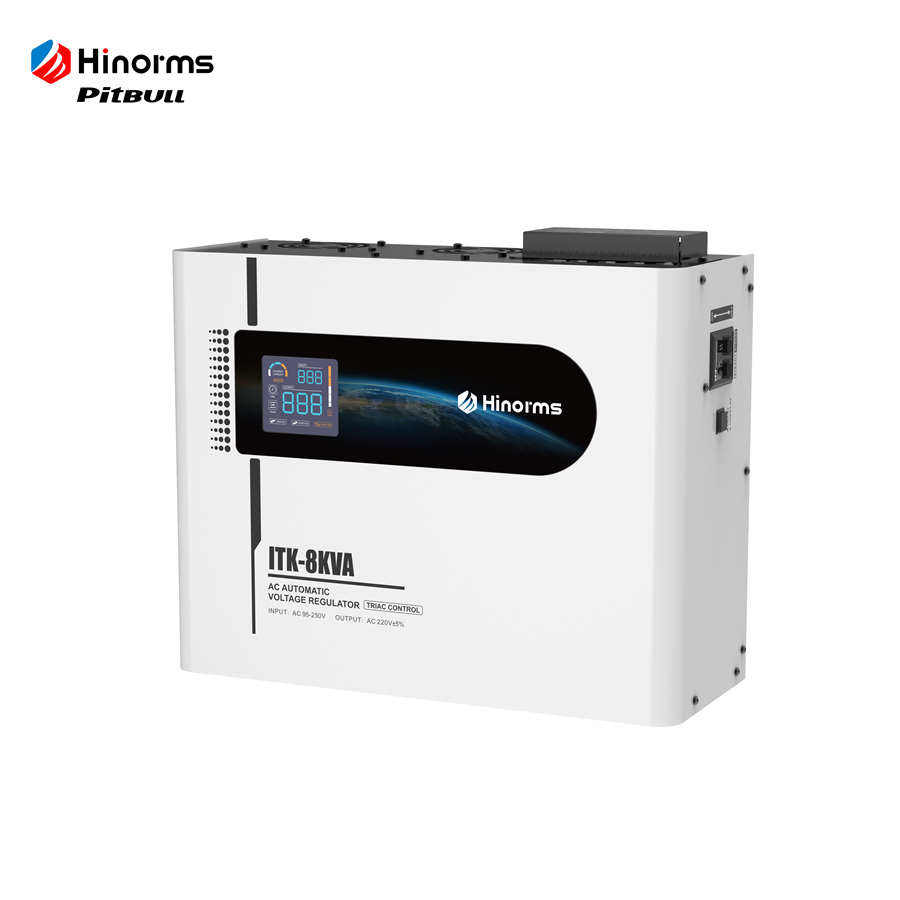

8KVA

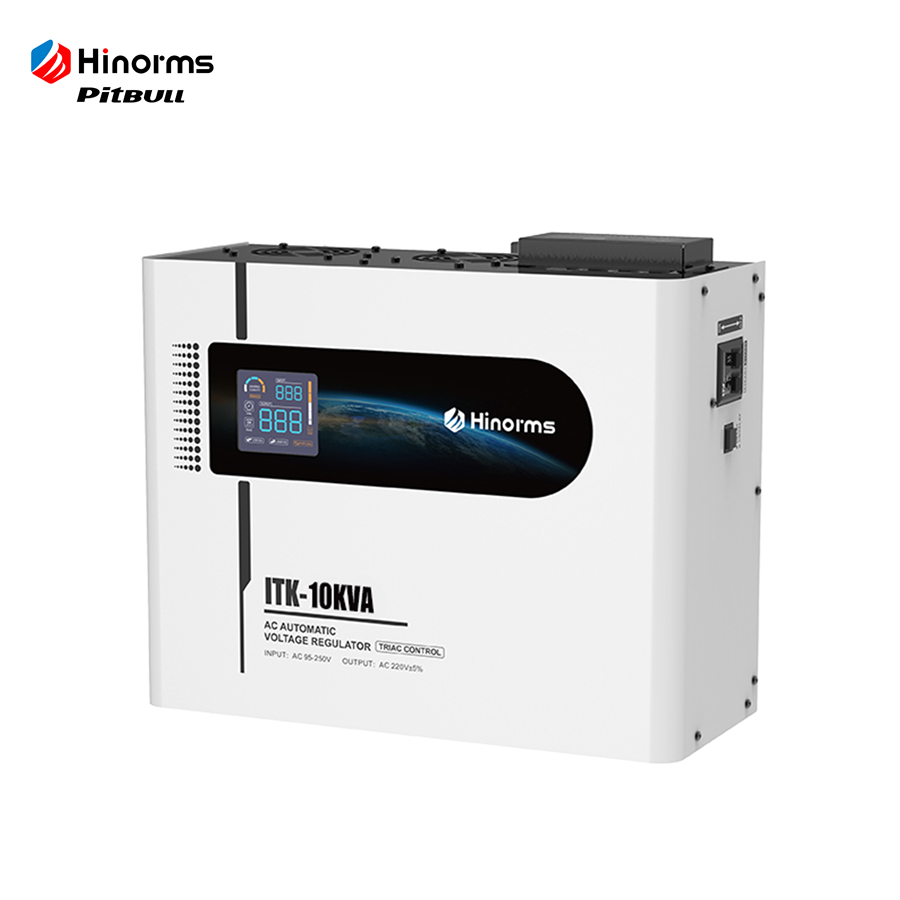

10KVA

12KVA

15KVA

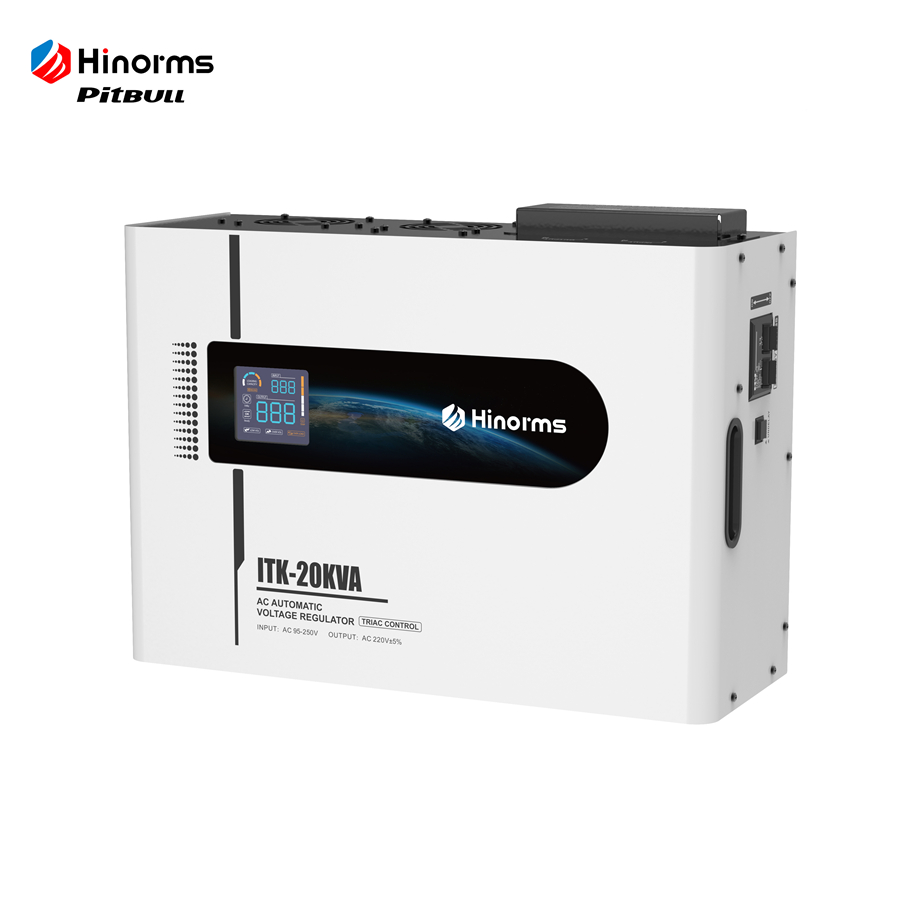

20KVA

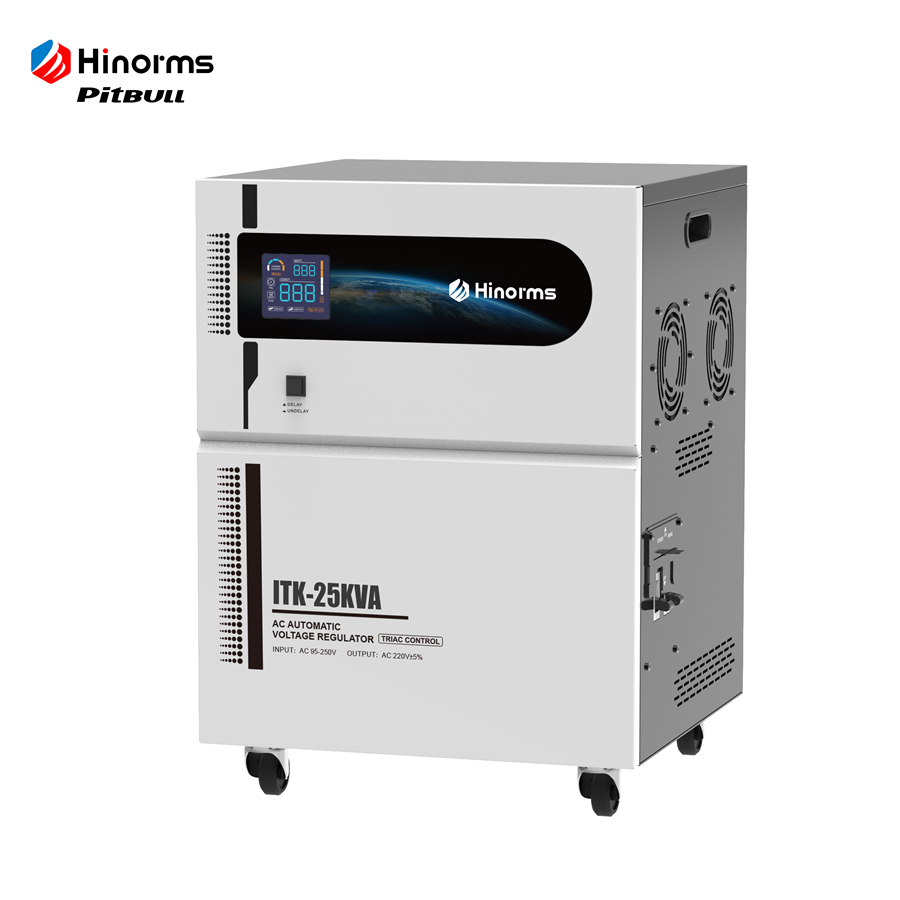

25KVA

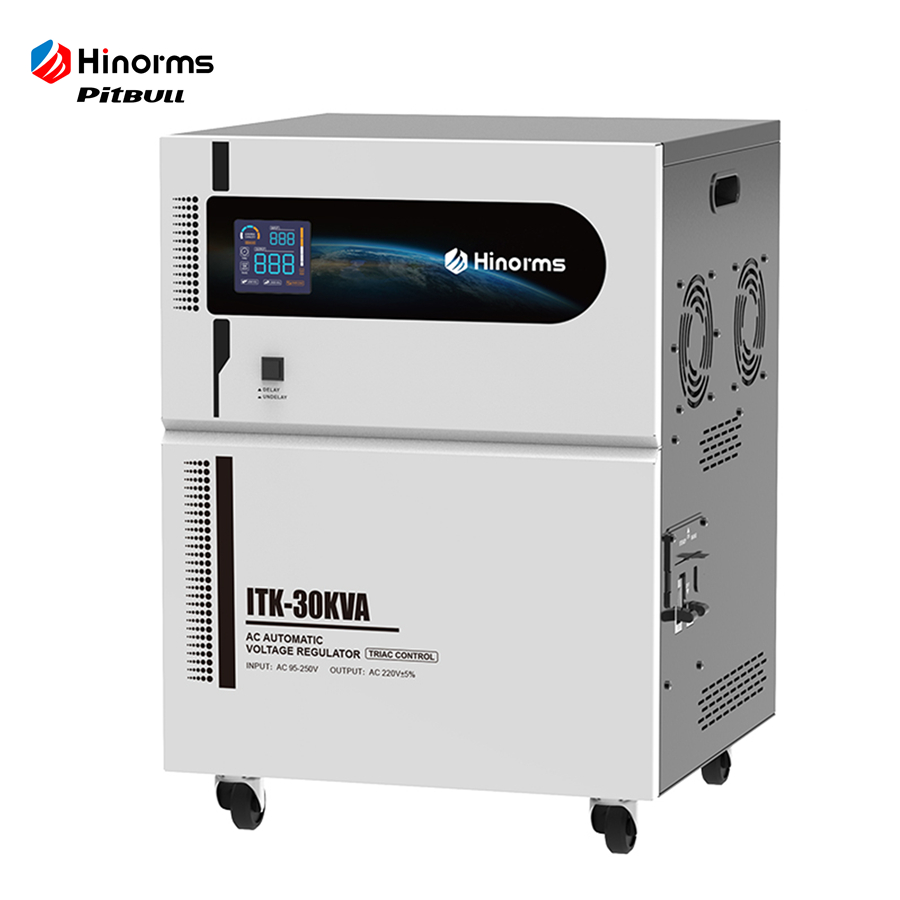

30KVA

Input Range:

95 - 250V

Description

Specifications

Online Inquiry

Product Description

Model:	ITK
Place of Origin:	Zhejiang, China
Brand Name:	Pitbull/Hinorms
Certification:	CE/ISO9001/ROHS/FCC
Packaging Details:	Ring Plywood Case/Wooden Case/EPE Foam
Delivery Time:	7-45 days(depends on quantity)
Payment Terms:	30% Deposit 70% Balance Before Delivery
Supply Ability:	50000 Units/Month

Applications

Home Appliances, Office Equipment, Medical Equipment, Industrial Equipment

Competitive Advantage

1.We are the standard drafter of the voltage stabilizer industry in China. Our founder, Mr. Hu, is a member of the China Power Supply Society.

2.For over 20 years, we have focused solely on the research and manufacturing of voltage stabilizers.

3.Our products have no substitutes in the market, because after years of hard work, we are the only factory that has truly solved the multiple pain points in the industry.

Product Specifications

Product model:		ITK
Capacity		1KVA/2KVA/3KVA/5KVA	8KVA/10KVA/12KVA/15KVA/20KVA/25KVA/30KVA
Input voltage range		AC 95-250V
Output voltage		AC 220V
Output Precision		±5%
Frequency		50Hz/60Hz
Phase types		Single Phase
Function	Control Type	SCR (Thyristor) Type
	Protection	Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage
	Delaying	5secs(Short); 200secs(Long)
	Digital Display	Show input and output voltage、over\low Voltage、overload、delay、temperature
Effciency	AC-AC	≥95%	≥98%
Environmental	Temperature	-20~50 degree
	Humidity	<90%
	Elevation	<4000m

faqs

What is the difference between relay, servo, thyristor and inverter type voltage regulators?

Relay type voltage regulators are cost effective and suitable for common home or commercial use. Servo type regulators provide smooth voltage adjustment and are widely used when higher accuracy is needed. Thyristor type regulators are suitable for almost all scenarios and offer advantages such as silent operation, fast response and very long service life. Inverter type regulators output pure sine wave voltage and deliver excellent voltage stabilization performance, although the cost is higher.

Which type of voltage regulator should I choose for my market?

Based on the experience of our successful distributors, it is usually better to purchase several types because different customers need different solutions. For single phase voltage regulators, relay type is a must have model for the huge home use market because it is affordable and practical. Thyristor type can be regarded as an upgraded option for customers who want higher quality, silent operation, fast response and very long service life. Servo type has high accuracy and is suitable for laboratories, special equipment and also home use. Inverter type has a higher price, so you can choose it according to your market positioning. In addition, you can decide how many three phase cabinet models to purchase based on your customer base, as they are very useful for villas, shopping malls and industrial scenarios.

Are your voltage regulators suitable for home use?

Yes. Our single phase voltage regulators are very suitable for home use, especially for air conditioners and other household appliances. Our relay type voltage regulators can support ultra wide voltage regulation, for example 45V to 280V. The built in software is designed for different load types and can recognize loads such as air conditioners, where the starting current may sharply pull down the voltage, then apply a targeted regulation mode for better protection and performance.

How do I choose the right model?

For distributors or wholesalers, we usually recommend choosing models based on your local voltage situation, common customer groups, target price level and sales channel. You can tell us your country, whether you mainly sell to home, commercial or industrial users, and your preferred type or capacity range, then we can recommend a suitable product mix.
