Wall-Mounted Series

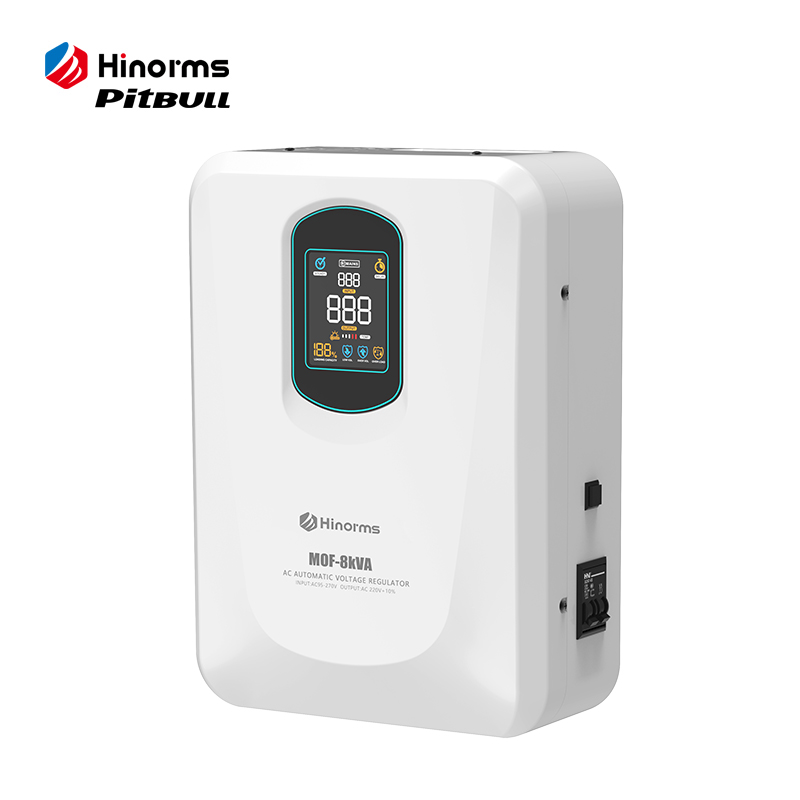

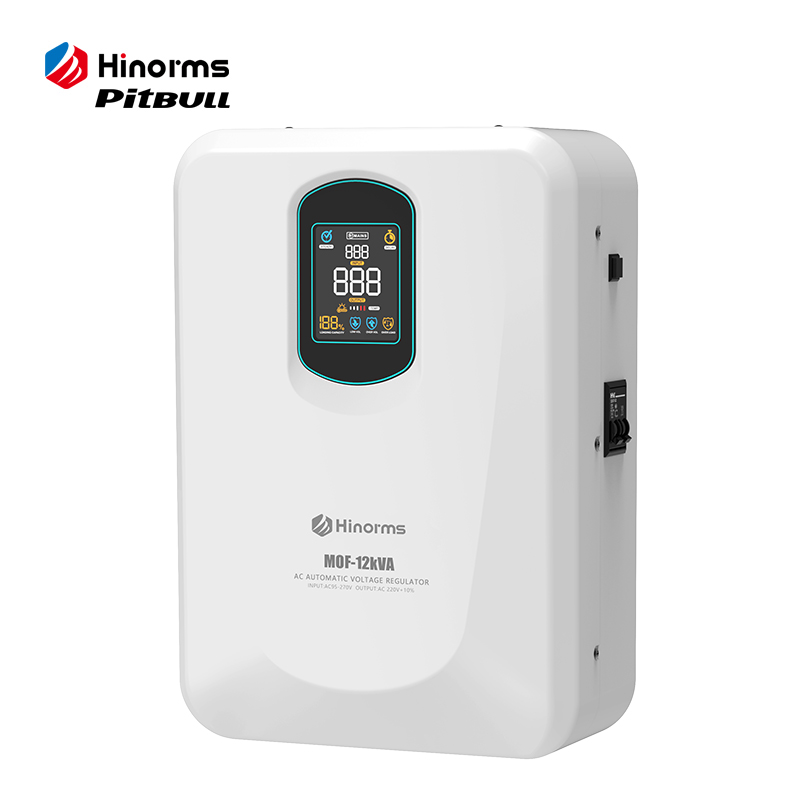

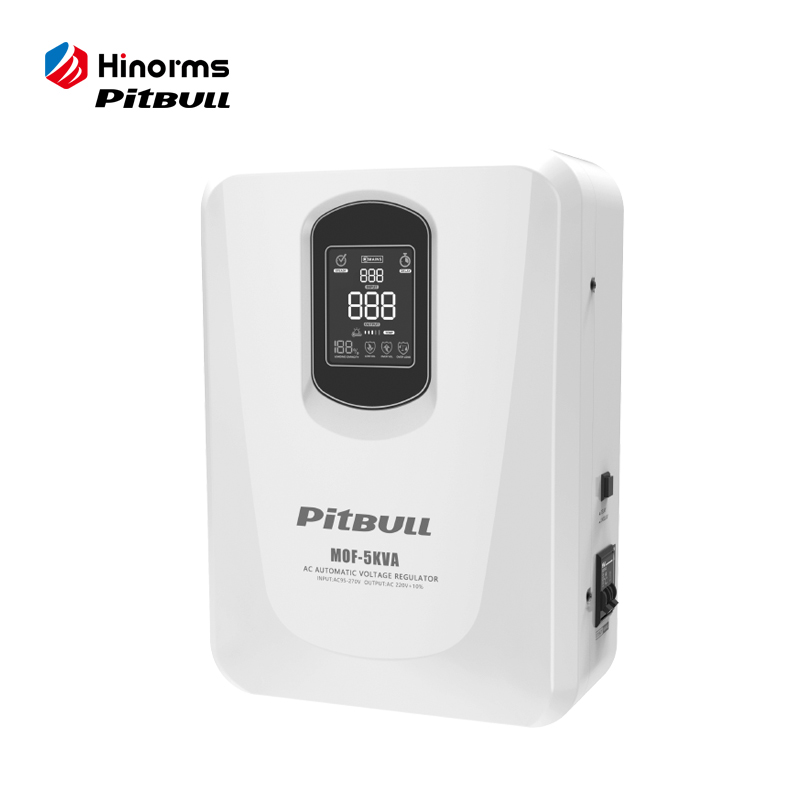

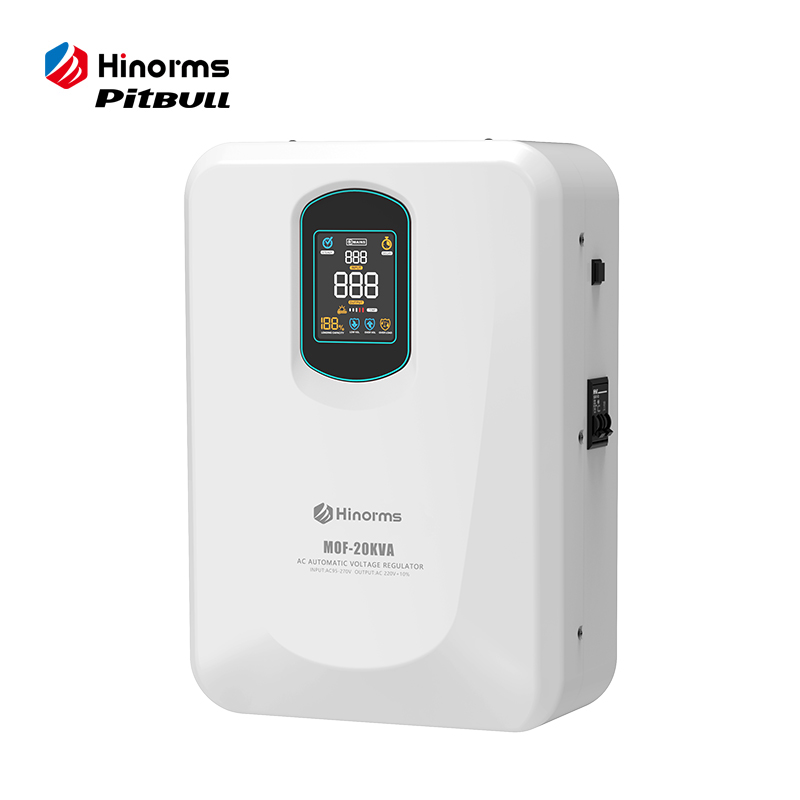

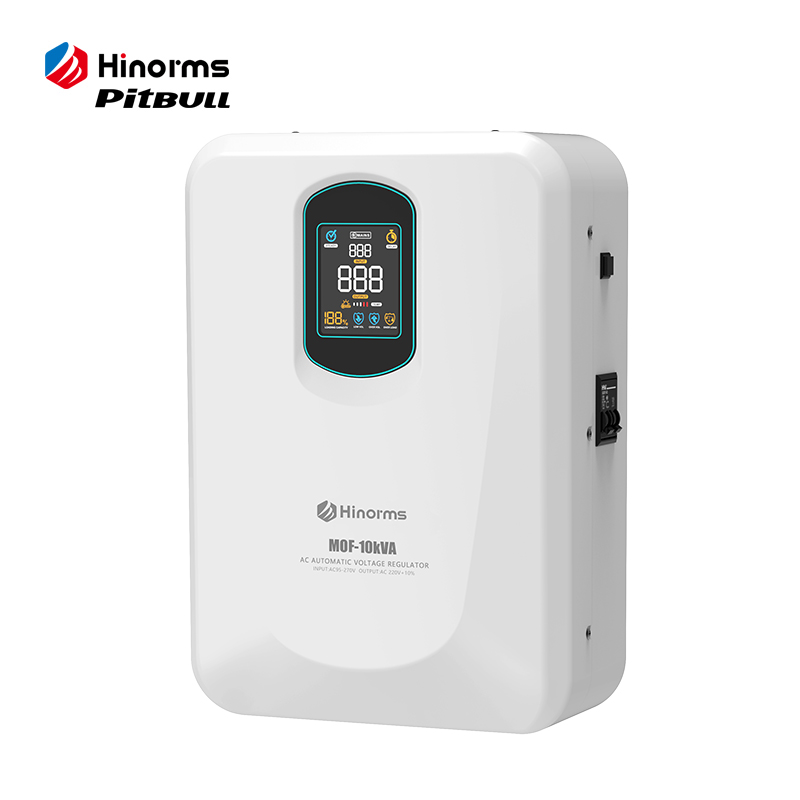

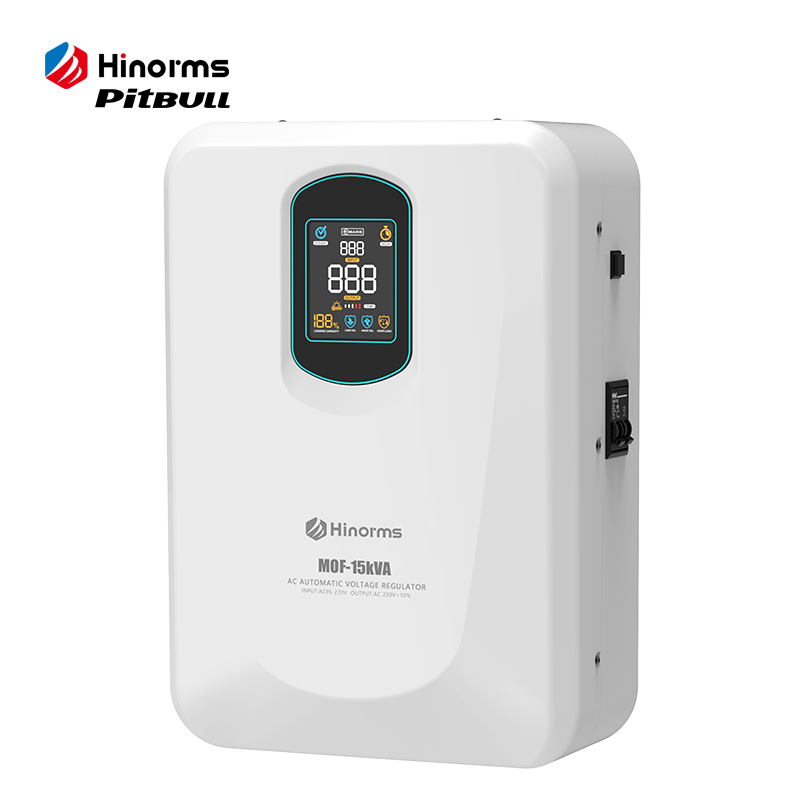

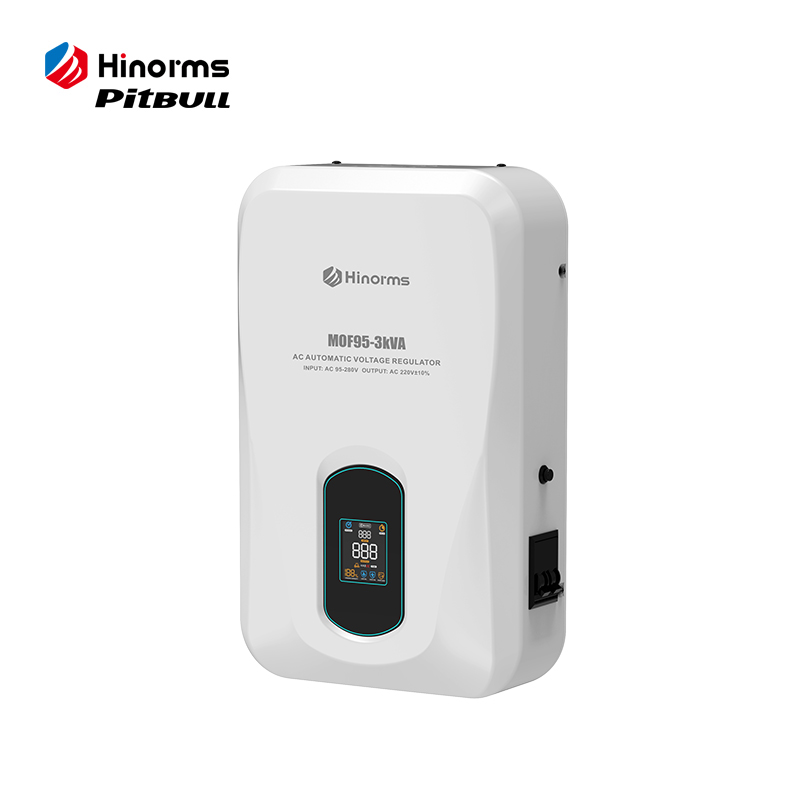

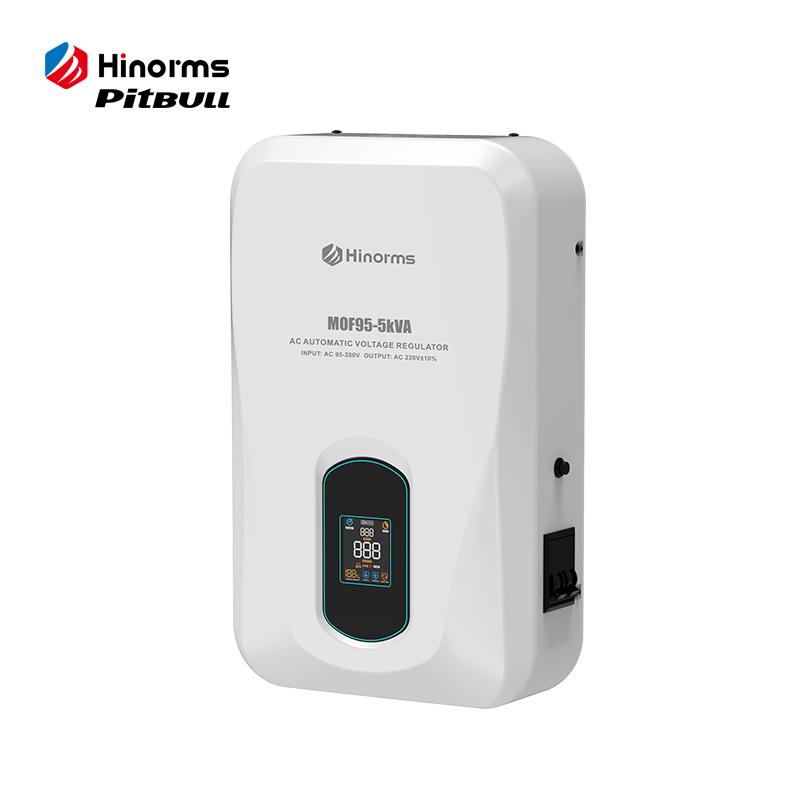

Relay Type Voltage Regulator MOF Series
Product Model:
MOF
Minimum Order Quantity:
10 PCS
Capacity:
3KVA
X5KVA
5KVA
8KVA
10KVA
12KVA
15KVA
20KVA
Input Range:
45-280V
60-280V
95-280V
Description
Specifications
Online Inquiry
Recommended Products
Product Description
| Model: | MOF |
| Place of Origin: | Zhejiang, China |
| Brand Name: | Pitbull/Hinorms |
| Certification: | CE/ISO9001/ROHS/FCC |
| Packaging Details: | Ring Plywood Case/Wooden Case/EPE Foam |
| Delivery Time: | 7-45 days(depends on quantity) |
| Payment Terms: | 30% Deposit 70% Balance Before Delivery |
| Supply Ability: | 50000 Units/Month |
Applications
Home Appliances, Office Equipment, Medical Equipment, Industrial Equipment
Competitive Advantage
1.We are the standard drafter of the voltage stabilizer industry in China. Our founder, Mr. Hu, is a member of the China Power Supply Society.
2.For over 20 years, we have focused solely on the research and manufacturing of voltage stabilizers.
3.Our products have no substitutes in the market, because after years of hard work, we are the only factory that has truly solved the multiple pain points in the industry.
Product Specifications
| Product model | MOF | |||
| Capacity | 3KVA/X5KVA | 5KVA | 8KVA/10KVA/12KVA/15KVA/20KVA | |
| Input voltage range | Option(1) | AC 95-270V | AC 95-280V | AC 95-280V |
| Option(2) | AC 60-280V | AC 60-280V | AC 60-280V | |
| Option(3) | AC 45-280V | AC 45-280V | AC 45-280V | |
| Output voltage | AC 220V(Customized for regional voltage.) | |||
| Output Precision | ±10% | |||
| Frequency | 50Hz/60Hz | |||
| Phase types | Single Phase | |||
| Function | Control Type | Relay Type | ||
| Protection | Overload/Overvoltage/Over-temperature/Short-circuit/Undervoltage(Optional) | |||
| Delaying | 3-5secs(Short) ; 3-7mins(Long) | |||
| Digital Display | Show input and output voltage、over\low Voltage、overload、delay、temperature | |||
| Effciency | AC-AC | ≥95% | ≥98% | |
| Environmental | Temperature | -20~50 degree | ||
| Humidity | <90% | |||
| Elevation | <4000m | |||
