PRODUCT FEATURES

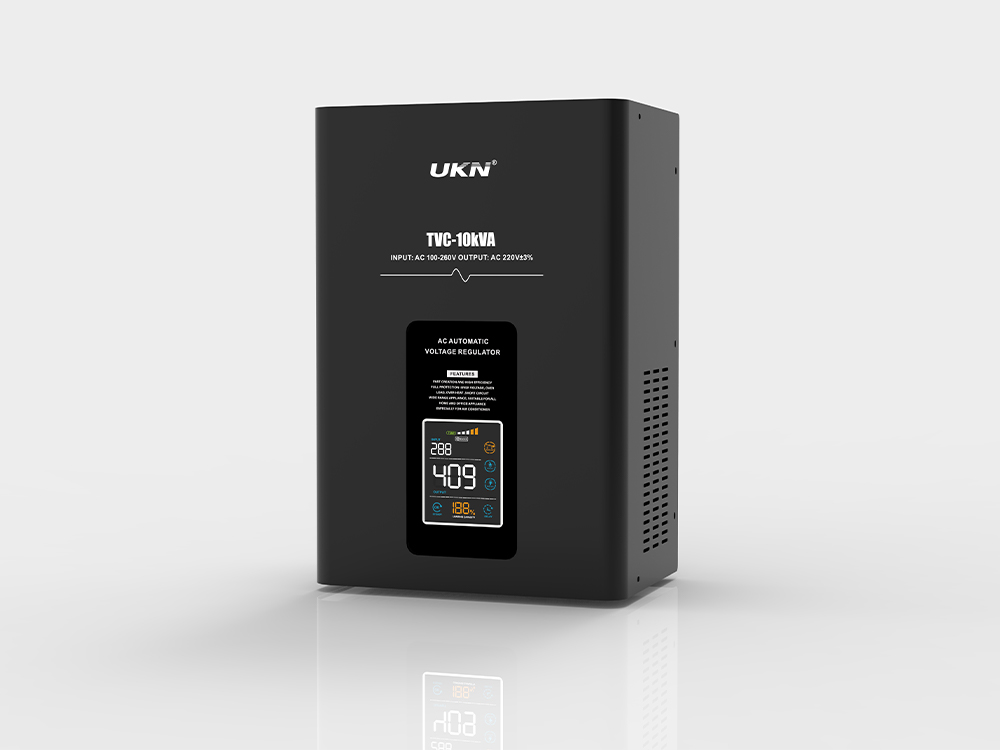

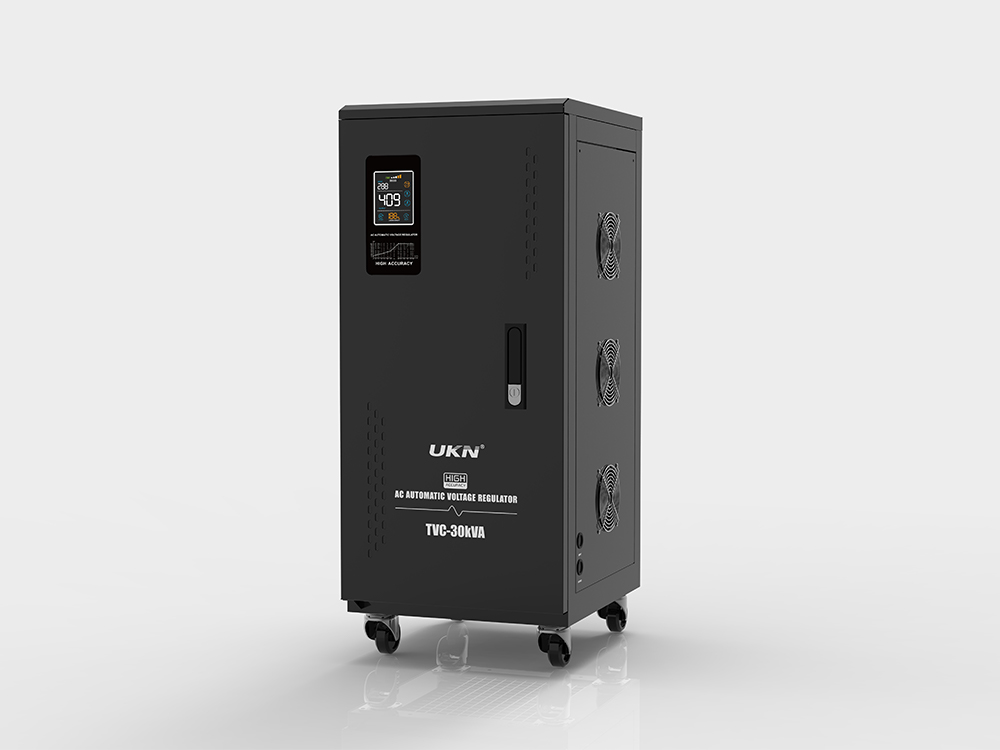

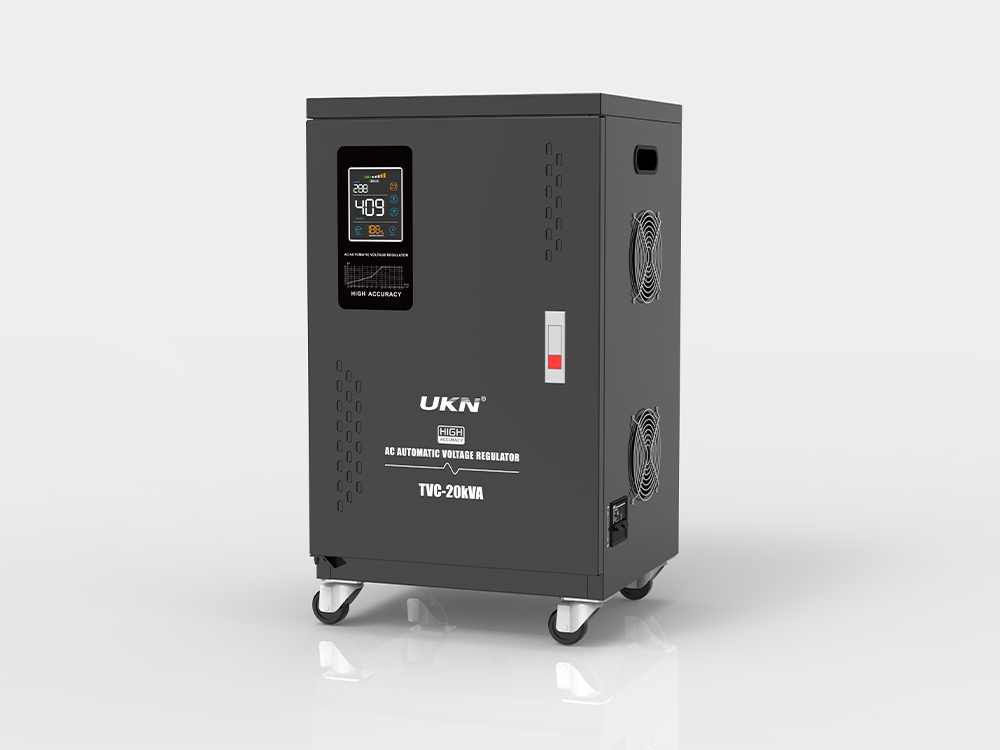

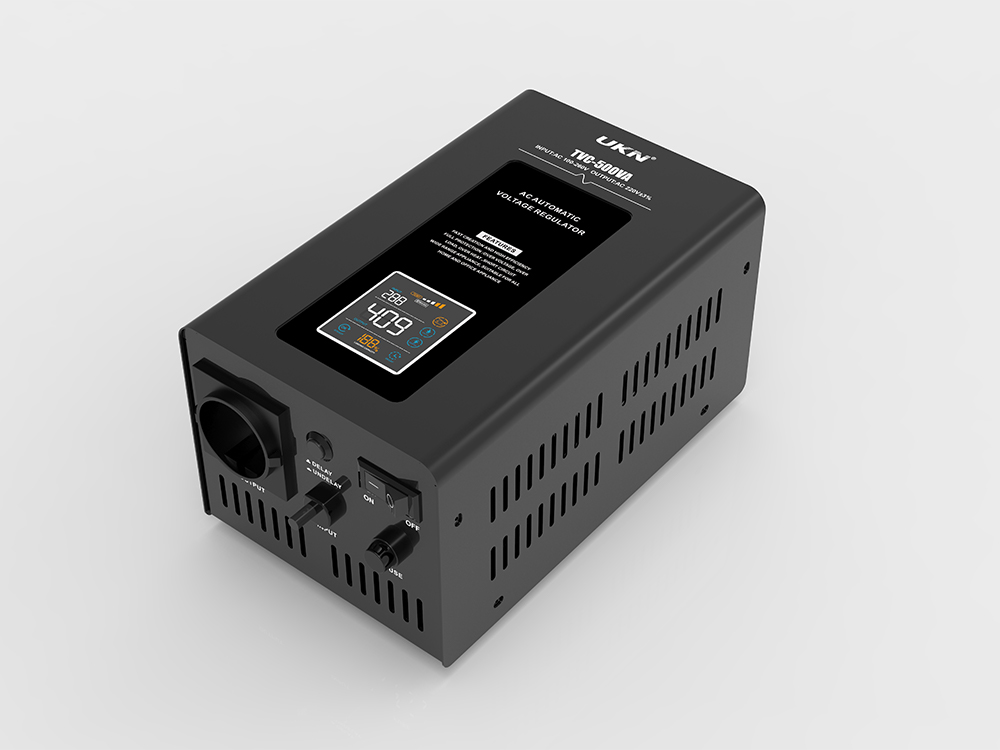

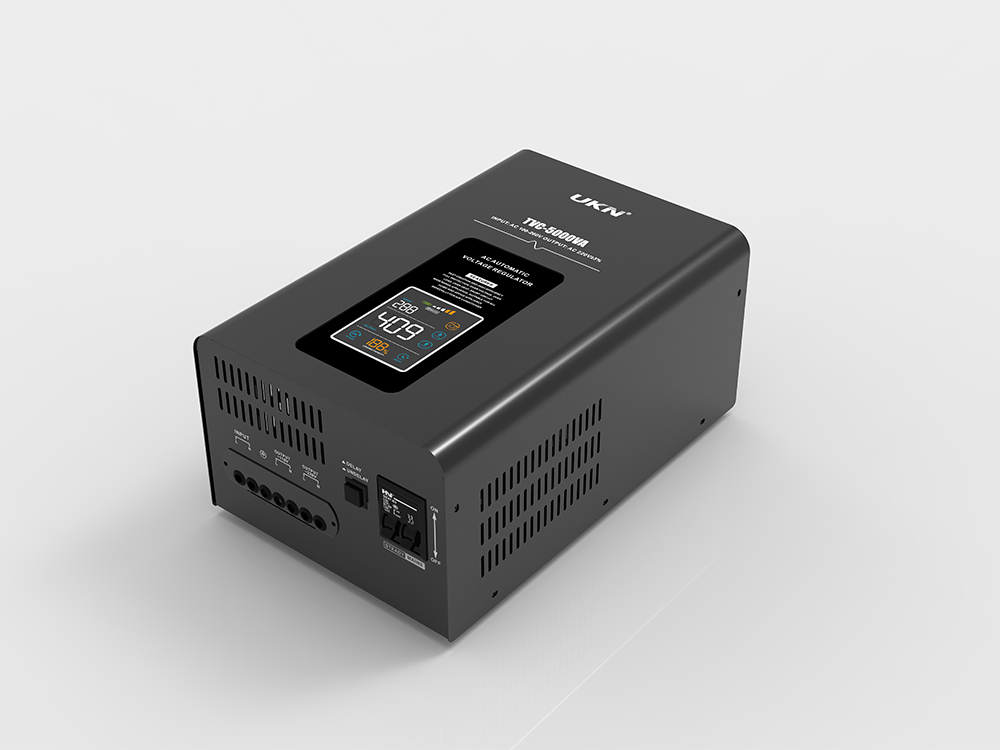

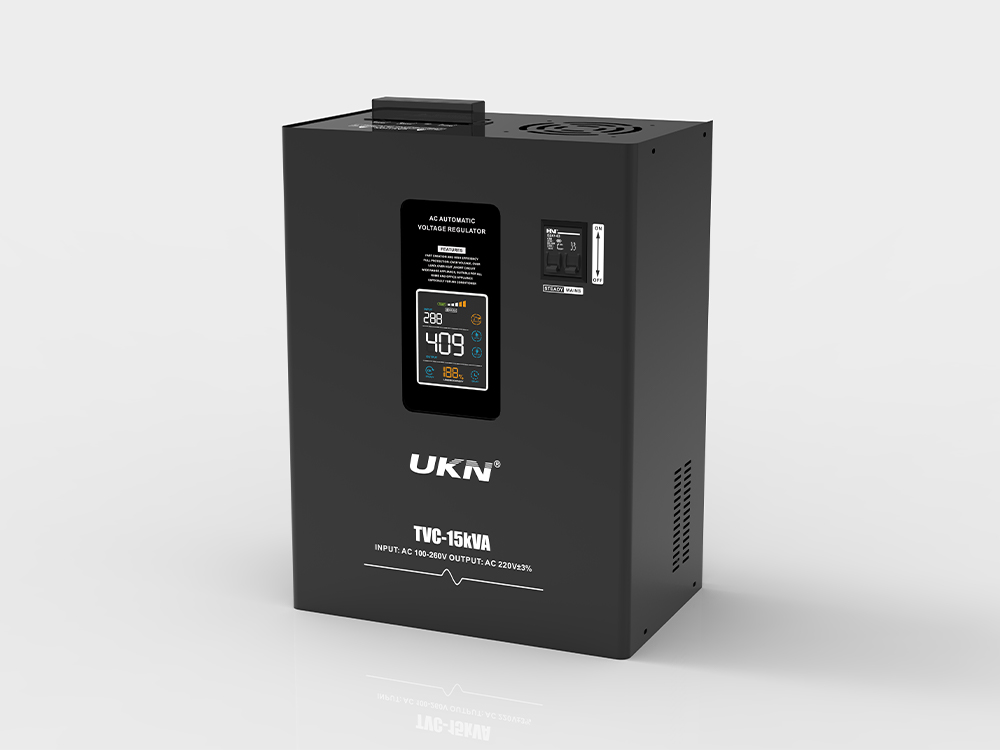

The product of this model is a servo type voltage regulator both for desktop and wall mounted,with LED digital display design,using motor-driven carbon brush sliding between turns of self-coupling transformer winding and directly adjust the output voltage.It is characterized by high-precision output.

APPLICATION

This servo type voltage regulator is widely used in industrial production,,scientific research,health care, household appliances which are with large fluctuation of grid voltage or the area with large seasonalgrid voltage.It can provide high-quality power to any load.

MODEL	TVC (500VA-15kVA)
INPUT VOLTAGE	AC 100V-260V
OUTPUT VOITAGE	AC 220V±1~3% 50/60HZ
DELAY TIME	Short Delay:3-5sec
PROTECTION	Over Voltage(246V±4V),Overload, High Temperature .Short Circuit
POWER	500VA-15kVA
FEATURE	The product of this model is a high-precision regulator, both for desktop and wall mounted, with LED/LCD digital display design,using motor-driven carbon brush sliding between turns of self-coupling transformer winding and directly adjust the output voltage.lt is characterized by high-precision output.
APPLICATION	It is widely used in industrial production, scientific research, health care, household appliances which are with large fluctuation of grid voltage or the area with large seasonal grid voltage.lt can provide high-quality power to any load.
Power Factor	≥0.9	≥0.9	≥0.9	≥0.9
Control	High precision servo motor
Digital display	show input and output voltage、Over\Low Voltage、Overload、delay、temperature	show input and output voltage、Over\Low Voltage、Overload、delay、temperature	show input and output voltage、Over\Low Voltage、Overload、delay、temperature	show input and output voltage、Over\Low Voltage、Overload、delay、temperature
Temperature protection	yes	yes	yes	yes
Short circuit&over load	air-switch/（fuse：500-2000va）	air-switch/（fuse：500-2000va）	air-switch/（fuse：500-2000va）	air-switch/（fuse：500-2000va）
Cooling type	FAN/Vents	FAN/Vents	FAN/Vents	FAN/Vents
Efficiency	AC 97%	AC 97%	AC 97%	AC 97%
Temperature	20°~55℃	20°~55℃	20°~55℃	20°~55℃
Humidity	<90	<90	<90	<90

R-image2 R-image3 R-image4 R-image5 R-image6

1、What is the heat dissipation performance of your product, there is a voltage regulator with a fan, how much temperature to start automatically?

Most of our products have their own fans, set to start the fan when the transformer temperature reaches 65 degrees, and have reasonably designed the cooling air path.

2、What is the resistance of your regulators to harsh conditions, such as wet environment, low temperature environment, high temperature environment, dusty environment? Do different countries have different high adaptability custom products?

We have more than 20 years of product production experience, fully consider the applicable environment of voltage regulator under different conditions, and have been fully tested under the limit state of product moisture-proof, corrosion-proof, high temperature, low temperature and so on. Our products have many stable customers in different overseas regions.
