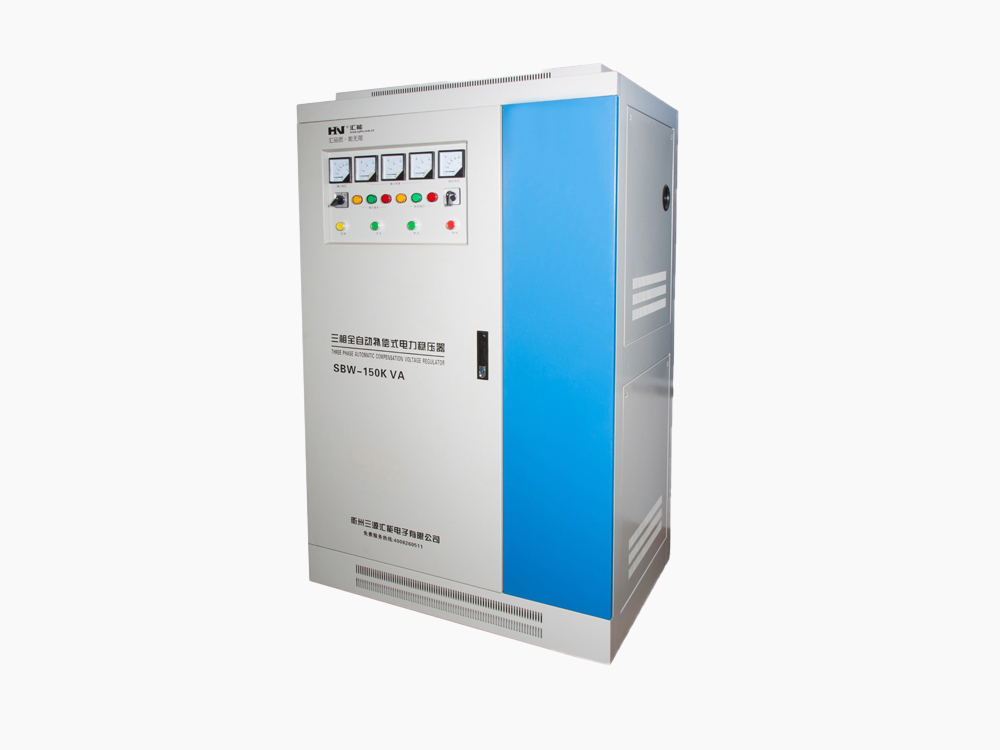

MODEL | SBW(50kVA-200kVA) |
INPUT VOLTAGE | 175Vac-265\^c (phase voltage) 300Vac-456Vac(line voltage) |
OUTPUT VOITAGE | Single phase: 220Vac Three phase:380Vac |
DELAY TIME | Short Delay:3-5sec |
PROTECTION | Over Voltage(246V±4V),Overioad,High Temperature,Short Circuit |
POWER | 50KVA/60KVA/100KVA/120KVA/150KVA/200KVA/250KVA/300KVA/320KVA/400KVA/500KVA/60K0VA/800KVA/1000KVA/1200KVA/1600KVA/2000KVA |
FEATURE | The product of this model is cabinet type design,pointer display/digital display selection.lt is characterized high-precision output.Suitable for a wide range of load.can withstand instantaneous overload.Long-term continuous work can be carried out, manual/ automatic switching and the automatic protection for over voltage, phase loss, phase sequence and mechanical failure are provided |
APPLICATION | It is widely used in various industries, small office equipment,refrigerator, electric fan, computer, pump, air conditioner and other household appliances. |
Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
Control | High precision servo motor |
Digital display | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature |
Temperature protection | yes | yes | yes | yes |
Short circuit&over load | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） |
Cooling type | FAN/Vents | FAN/Vents | FAN/Vents | FAN/Vents |
Efficiency | AC 97% | AC 97% | AC 97% | AC 97% |
Temperature | 20°~55℃ | 20°~55℃ | 20°~55℃ | 20°~55℃ |
Humidity | <90 | <90 | <90 | <90 |
